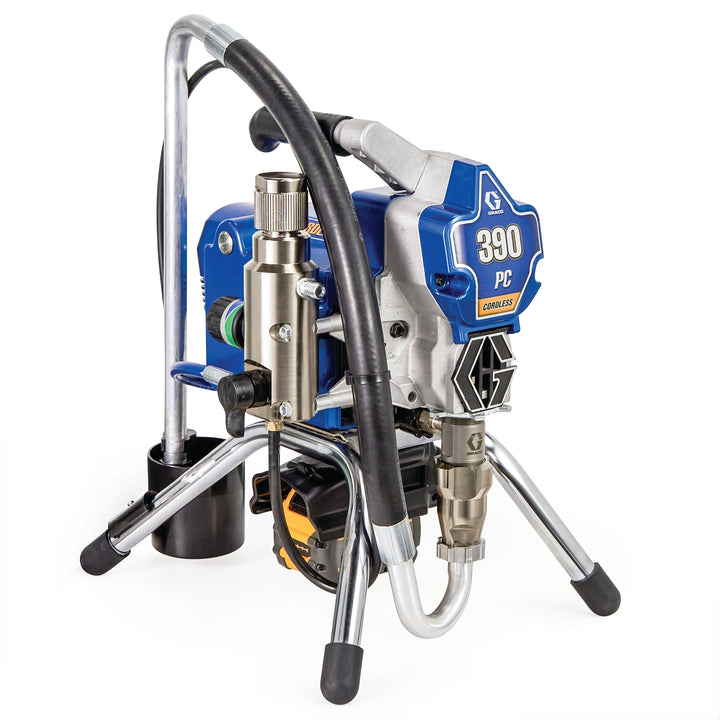

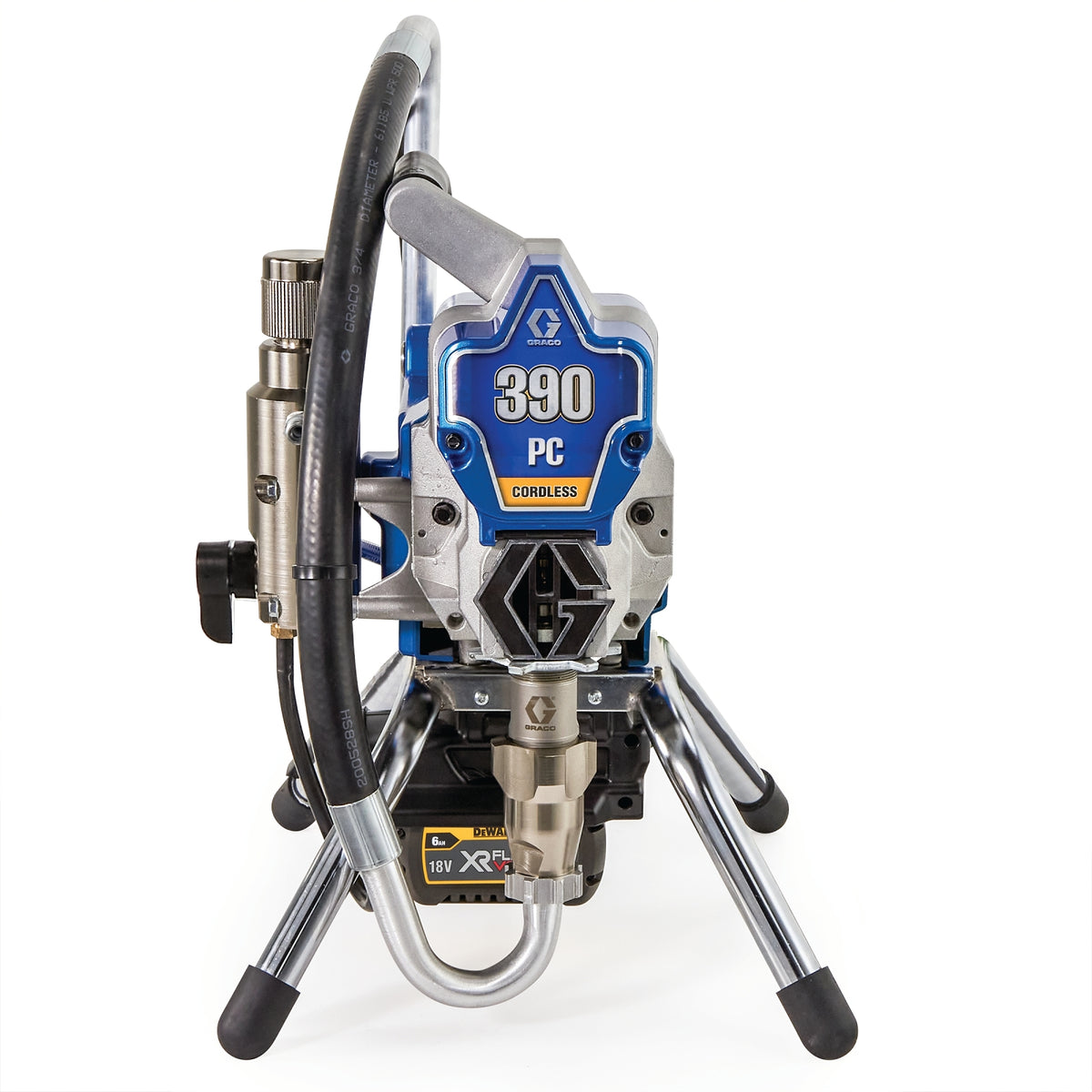

Graco 390 PC Cordless Stand
Graco 390 PC Cordless Stand
Graco 390 PC Cordless Stand
Graco 390 PC Cordless Stand

Pinch or tap to zoom. Swipe for more.
390 PC Cordless

Graco 390 PC Cordless Stand

Graco part 25T882

Max tip
0.021 in
Max pressure
3300 psi (228 bar)
Max flow
1.8 L/min
Motor
Brushless DC

$4,204.00 inc GST

In the box All of it

Derrimut, VIC only: 8 in stock, ships in 1 to 2 business days · Stock checked 21 Oct, 5:49am

This counts toward your loyalty tier. Members save on tips and parts for it. How it works

Graco's safety warnings

  • Engage trigger lock when not spraying.
  • Do not put your hand over the spray tip.
  • Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing equipment.

Read the full injection warning

  • $0 freight to Brisbane, Sydney, Melbourne and Adelaide metro. Flat heavy goods rate elsewhere, $55 to $220.
  • Click and collect from Deception Bay QLD, usually ready in 3 to 5 days.
    Other pickup points
    • Derrimut, VIC: paid orders, allow 3 to 4 hours, wait for the pickup email
    • Smithfield NSW: orders of $1,000 or more, usually 2 to 4 days
    • Largs North SA: orders of $1,000 or more, usually 1 to 3 days
    • Rockingham WA: orders of $1,000 or more, usually 4 to 7 days

    NSW, SA and WA points are Refuelling Solutions c/o Airless. Choose your pickup point at checkout. How it works

  • Pay over time with LeaseGo equipment finance, or pay by bank transfer. Both are options at checkout. Details
  • Genuine Graco. 12 months from date of sale, plus Graco's lifetime warranty on the Advantage Drive gears. Details
  • Faulty or the wrong part from us? We fix it, replace it or refund it, and cover reasonable return freight. Unused and changed your mind? Ask us within 30 days of delivery (conditions and a restocking fee apply). Returns
  • Free Pump Armor with your sprayer A 0.95 L bottle goes in your cart with the sprayer and comes off the order at checkout. One per order.
  • Questions before you buy? Email spray@airlessspray.com.au or ask the chat assistant. We reply within one business day.

What you need to spray

Tips, filters and hose that suit the 390 PC Cordless Stand.

Spray tips

  • Graco RAC X LP Low Pressure SwitchTip $58.00

Guard and seals

Filters

Hose and whips

  • Make it 30 m Add 15 m to the hose in the box (30 m total). Or replace the hose in the box with one 30 m length: the 30 m BlueMax II hose is sold on its own and needs no coupler. Both are 1/4 in, rated to 227 bar (3300 psi). $204.00 $163.21 20% off the pair

Care and site

Spare parts

Keep it running

  • Preventative maintenance pack Everything a service replaces on this sprayer: gun filter, gun repair kit. $95.00 15% off when bought with the sprayer, see the kit below
  • Gun filter 60 mesh 287032Paint solids clog it first. A spare means no stopping to clean it mid job. $14.00
  • Contractor PC ProConnect replacement cartridgeThe gun's wear part. Swap it when the trigger leaks or won't shut off cleanly. $81.00
Every tip it runs, up to 0.021 in

Overview

Why it's built this way.

The 390 PC Cordless is Graco's battery powered stand sprayer. It runs a 390 class piston pump off DeWALT FLEXVOLT batteries, so you set up where the job is rather than where the power is. Graco rate it to a 0.021 in tip, 228 bar and 1.8 L/min, the same tip and flow as the corded Ultra 390.

  • Graco approve it for water based, oil based and flammable (solvent based) paints and coatings. For oil based and flammable materials, connect the grounding clamp to a true earth ground, spray outdoors or with a flow of fresh air, and keep the pump at least 6.1 m from the spray area. Not approved for explosive atmospheres.
  • Max tip 0.021 in, max 228 bar, max delivery 1.8 L/min
  • Brushless DC motor, two DeWALT FLEXVOLT 54V 6 Ah batteries and a fast charger in the box
  • Up to 11 L per battery charge and under 60 minutes to recharge (Graco's figures)
  • ProConnect pump replacement and Easy Out pump filter
  • Contractor PC handpiece with RAC X LP 517 SwitchTip and 15 m BlueMax II hose
  • ANZ model: 54V batteries, 230V charger and AS3112 ground adapter

Specifications

The numbers.

Graco 390 PC Cordless Stand
Price inc GST$4,204.00
Graco part number25T882 (ANZ model)
PowerBattery: 2x DeWALT FLEXVOLT 54V 6 Ah (20A164) + DeWALT 54V fast charger, 230V (20A167)
Compatible batteriesDeWALT FLEXVOLT DCB606, DCB546, DCB609, DCB547, DCB548, DCB612
Max tip size0.021 in
Max working pressure3300 psi (228 bar)
Max flow1.8 L/min
Paint baseWater, oil and solvent based, including flammable materials. Graco 3A8179G p10: "The clamp must be connected to a true earth ground when spraying or flushing oil-based or flammable materials." Keep the pump at least 6.1 m from the spray area. No halogenated hydrocarbon solvents or chlorine bleach. Not approved for explosive atmospheres.
MotorBrushless DC
PumpProConnect displacement pump 17C488 (Asia/ANZ/Japan)
Hose1/4 in x 15 m BlueMax II (240794)
HandpieceContractor PC (17Y043)
TipRAC X LP 517 SwitchTip
Weight14 kg, 15 kg with battery
Dimensions40.6 x 35.6 x 47 cm (L x W x H)
Sound pressure90 dB(A) at 1 m
FrameStand

Safety. Graco rates this sprayer for water based, oil based and flammable materials such as xylene, MEK and lacquer thinner. For oil based or flammable materials, connect the grounding clamp to a true earth ground and spray outdoors or in a well ventilated area. Keep the pump at least 6.1 m from the spray area. No paint or solvent containing halogenated hydrocarbons, and no chlorine bleach. Not approved for explosive atmospheres or hazardous locations.

Questions

Asked before you buy.

What's the biggest tip it runs?

0.021 in, with a max flow of 1.8 L/min at up to 3300 psi (228 bar). Running a bigger tip than this wears the pump and the fan won't hold.

What comes with it?
  • Contractor PC handpiece with RAC X LP 517 SwitchTip and RAC X guard (17Y043)
  • 1/4 in x 15 m BlueMax II hose (240794)
  • 2x DeWALT FLEXVOLT 54V 6 Ah battery (20A164)
  • DeWALT 54V fast charger, 230V (20A167)
  • Ground wire and clamp, AS3112 ground adapter (16H835)
What's the warranty?

12 months from date of sale, plus Graco's lifetime warranty on the Advantage Drive gears. Graco do not make the DEWALT batteries and charger, so those carry DEWALT's own warranty, not Graco's. Wear parts not covered.

Where's the manual?

3A8179 Cordless Electric Airless Sprayers (390 PC Cordless), Operation, Parts, and 1 more under Manuals.

When will it ship?

Derrimut, VIC only: 8 in stock, ships in 1 to 2 business days · Stock checked 21 Oct, 5:49am

Freight and lead times

Something else? Email spray@airlessspray.com.au or ask Tip.

Graco 390 PC Cordless Stand $4,204.00 inc GST

Compare sprayers

Specs from each maker's published data. Rows show only what's listed.

Build your kit

Set up for the way you work

Tick the tips, filters and extras you need with this sprayer. The total updates as you go.

Keep it running

The wear parts for this sprayer. 15% off when you buy them with it. Unticked: add what you want on the shelf.

Or add them one at a time.

Interactive parts diagram

Find the part. Add it to cart.

Graco's own exploded views. Tap a number to see the part. Filled numbers wear out with use, so keep a spare.

Wear part, keep a spareOther parts
Parts diagrams for Graco 390 PC Cordless Stand are being mapped from the Graco manual. Email the part number or a photo to spray@airlessspray.com.au and we'll confirm it.
