GRACO
Gun filter 100 mesh
- Mesh
- 100 mesh
- Fits
- Ultra 390 +8 more
- Part no.
- 287033
In stock: 21 at Deception Bay QLD, 58 at Derrimut, VIC · Stock checked 22 Oct, 6:30am
$13.00 inc GST
Graco FinishPro GX 19 Hopper
Graco part 17H223
- Max tip
- 0.019 in
- Max pressure
- 3000 psi (207 bar)
- Max flow
- 1.4 L/min
$2,668.00 inc GST
In the box All of it
- Contractor FTx handpiece with RAC X FF LP SwitchTip (17J261)
-
3/16 in x 7.6 m BlueMax II hose (214698)
- 1.5 gallon (5.7 L) hopper with lid (17J244, 17H417)
Derrimut, VIC only: 56 in stock, ships in 1 to 2 business days · Stock checked 22 Oct, 5:56am
This counts toward your loyalty tier. Members save on tips and parts for it. How it works
Out of stock. Want an email when it's back?
Graco's safety warnings
- Engage trigger lock when not spraying.
- Do not put your hand over the spray tip.
- Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing equipment.
- $0 freight to Brisbane, Sydney, Melbourne and Adelaide metro. Flat heavy goods rate elsewhere, $55 to $220.
-
Click and collect from Deception Bay QLD, usually ready in 3 to 5 days.
Other pickup points
- Derrimut, VIC: paid orders, allow 3 to 4 hours, wait for the pickup email
- Smithfield NSW: orders of $1,000 or more, usually 2 to 4 days
- Largs North SA: orders of $1,000 or more, usually 1 to 3 days
- Rockingham WA: orders of $1,000 or more, usually 4 to 7 days
NSW, SA and WA points are Refuelling Solutions c/o Airless. Choose your pickup point at checkout. How it works
- Pay over time with LeaseGo equipment finance, or pay by bank transfer. Both are options at checkout. Details
- Genuine Graco. 12 months from date of sale. Details
- Faulty or the wrong part from us? We fix it, replace it or refund it, and cover reasonable return freight. Unused and changed your mind? Ask us within 30 days of delivery (conditions and a restocking fee apply). Returns
- Free Pump Armor with your sprayer A 0.95 L bottle goes in your cart with the sprayer and comes off the order at checkout. One per order.
- Questions before you buy? Email spray@airlessspray.com.au or ask the chat assistant. We reply within one business day.
What you need to spray
Tips, filters and hose that suit the FinishPro GX 19 Hopper.
Spray tips
Care and site
Spare parts
-
InstaClean fluid filter, 40 mesh 288747
- Mesh
- 40 mesh
- Fits
- FinishPro GX 19 Cordless +2 more
- Part no.
- 288747
Keep it running
-
Preventative maintenance pack Everything a service replaces on this sprayer: gun filter, gun repair kit, manifold filter, pump armor. $170.00 15% off when bought with the sprayer, see the kit below
-
Gun filter 60 mesh 287032Paint solids clog it first. A spare means no stopping to clean it mid job. $13.00
-
Contractor and Contractor FTx gun repair kitThe gun's wear part. Swap it when the trigger leaks or won't shut off cleanly. $124.00
-
Pump Armor pump protectant, 0.95 L (1 qt)Protects the pump while it is stored. Run it through after every clean. $18.00
Overview
Why it's built this way.

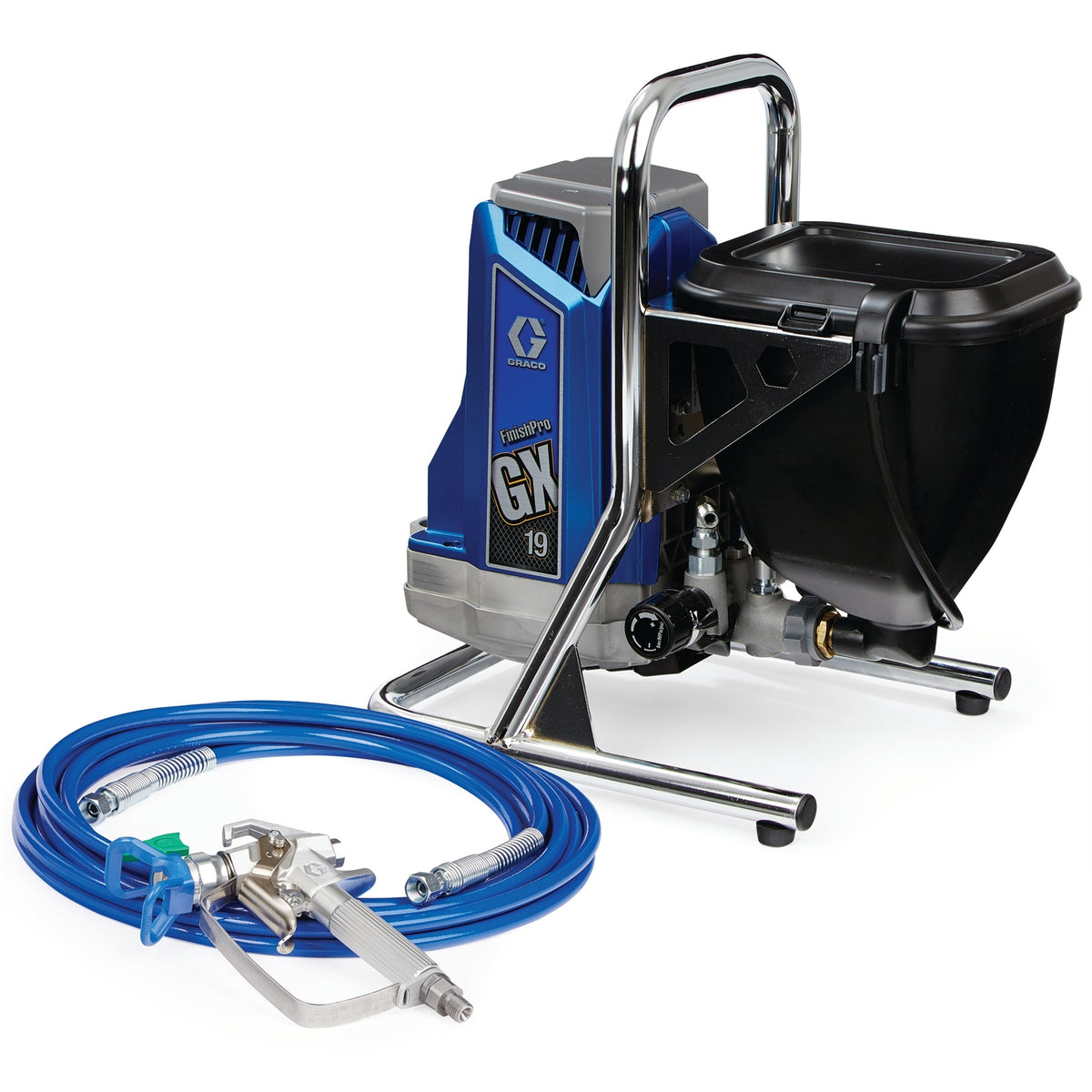

The FinishPro GX 19 is Graco's 230V finishing sprayer with a 1.5 gallon (5.7 L) hopper on the pump, for spraying small amounts of material. Graco rate it to a 0.019 in tip, 207 bar and 1.4 L/min.
- Graco rate it for water based and oil based paints only. Flammable materials such as lacquer thinner, MEK and xylene are not compatible and cannot be used.
- Max tip 0.019 in, max 207 bar, max delivery 1.4 L/min
- 1.5 gallon (5.7 L) hopper with lid, easy carry handle
- ProXChange pump: swap the pump on the job with no tools
- Contractor FTx handpiece with a RAC X FF LP SwitchTip and 7.6 m BlueMax II hose
- ANZ model: 220 to 240 V, 5 A, AU cordset
Specifications
The numbers.
| Spec | Graco FinishPro GX 19 Hopper | |
|---|---|---|
| Price inc GST | $2,668.00 | |
| Graco part number | 17H223 (ANZ model) | |
| Power | Electric, 220 to 240 V, 5 A (AU cordset 242005) | |
| Max tip size | 0.019 in (0.48 mm) | |
| Max working pressure | 3000 psi (207 bar) | |
| Max flow | 1.4 L/min | |
| Paint base | Water and oil based. Graco 3A3212S p6: flammable materials (xylene, toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, turpentine) are not compatible and cannot be used. Oil based material must have a flash point above 38 °C; spray it outdoors or with a flow of fresh air. No halogenated hydrocarbon solvents or chlorine bleach. | |
| Pump | ProXChange displacement pump 17J909 | |
| Hopper | 1.5 gallon (5.7 L), with lid | |
| Hose | 3/16 in x 7.6 m BlueMax II (214698) | |
| Handpiece | Contractor FTx (17J261) | |
| Tip | RAC X FF LP SwitchTip | |
| Outlet filter | InstaClean fluid filter 288747, optional (not installed on all models) | |
| Generator minimum | 3500 W | |
| Dimensions | 51.3 x 34.3 x 49.8 cm (L x W x H) | |
| Operating temperature | 4 to 46 °C | |
| Sound pressure | 83 dB(A) at 1 m | |
| Frame | Hopper |
Safety. Graco rates this sprayer for water based and oil based materials only. Flammable materials such as xylene, MEK and lacquer thinner are not compatible and cannot be used, and oil based material must have a flash point above 38 °C. The sprayer generates sparks: keep the pump at least 6.1 m from the spray area, in a well ventilated area. No paint or solvent containing halogenated hydrocarbons, and no chlorine bleach. Not approved for explosive atmospheres or hazardous locations.
Questions
Asked before you buy.
What's the biggest tip it runs?
0.019 in, with a max flow of 1.4 L/min at up to 3000 psi (207 bar). Running a bigger tip than this wears the pump and the fan won't hold.
What comes with it?
- Contractor FTx handpiece with RAC X FF LP SwitchTip (17J261)
- 3/16 in x 7.6 m BlueMax II hose (214698)
- 1.5 gallon (5.7 L) hopper with lid (17J244, 17H417)
What's the warranty?
12 months from date of sale. Wear parts not covered.
Where's the manual?
3A3212 GX Electric Airless Sprayers, Operation, Parts, and 1 more under Manuals.
When will it ship?
Derrimut, VIC only: 56 in stock, ships in 1 to 2 business days · Stock checked 22 Oct, 5:56am
Something else? Email spray@airlessspray.com.au or ask Tip.
Graco FinishPro GX 19 Hopper
$2,668.00 inc GST
Build your kit
Set up for the way you work
Tick the tips, filters and extras you need with this sprayer. The total updates as you go.
Keep it running
The wear parts for this sprayer. 15% off when you buy them with it. Unticked: add what you want on the shelf.
Or add them one at a time.
Interactive parts diagram
Find the part. Add it to cart.
Graco's own exploded views. Tap a number to see the part. Filled numbers wear out with use, so keep a spare.
Wear part, keep a spareOther parts
Parts diagrams for Graco FinishPro GX 19 Hopper are being mapped from the Graco manual.
Email the part number or a photo to spray@airlessspray.com.au and we'll confirm it.
Keep spraying
Tips, filters and handpieces
GRACO
FTx airless spray gun, 2 finger
- Part no.
- 17J261
On order. Expected from Graco Australia around 18 Nov · Stock checked 22 Oct, 5:59am
$769.00 inc GST
GRACO
InstaClean fluid filter, 40 mesh 288747
- Mesh
- 40 mesh
- Fits
- FinishPro GX 19 Cordless +2 more
- Part no.
- 288747
In stock: 5 at Deception Bay QLD, 96 at Derrimut, VIC · Stock checked 22 Oct, 6:30am
$15.00 inc GST
GRACO
In-line Heavy-Duty Texture airless spray gun, 4 finger
- Pressure
- 4000 psi (276 bar)
- Tip
- RAC 5 SwitchTip
- Part no.
- 245820
On order. Expected from Graco Australia around 25 Nov · Stock checked 22 Oct, 5:46am
$1,815.00 inc GST
