GRACO
FTx airless spray gun, 2 finger
- Part no.
- 17J261
On order. Expected from Graco Australia around 17 Nov · Stock checked 21 Oct, 6:01am
$769.00 inc GST

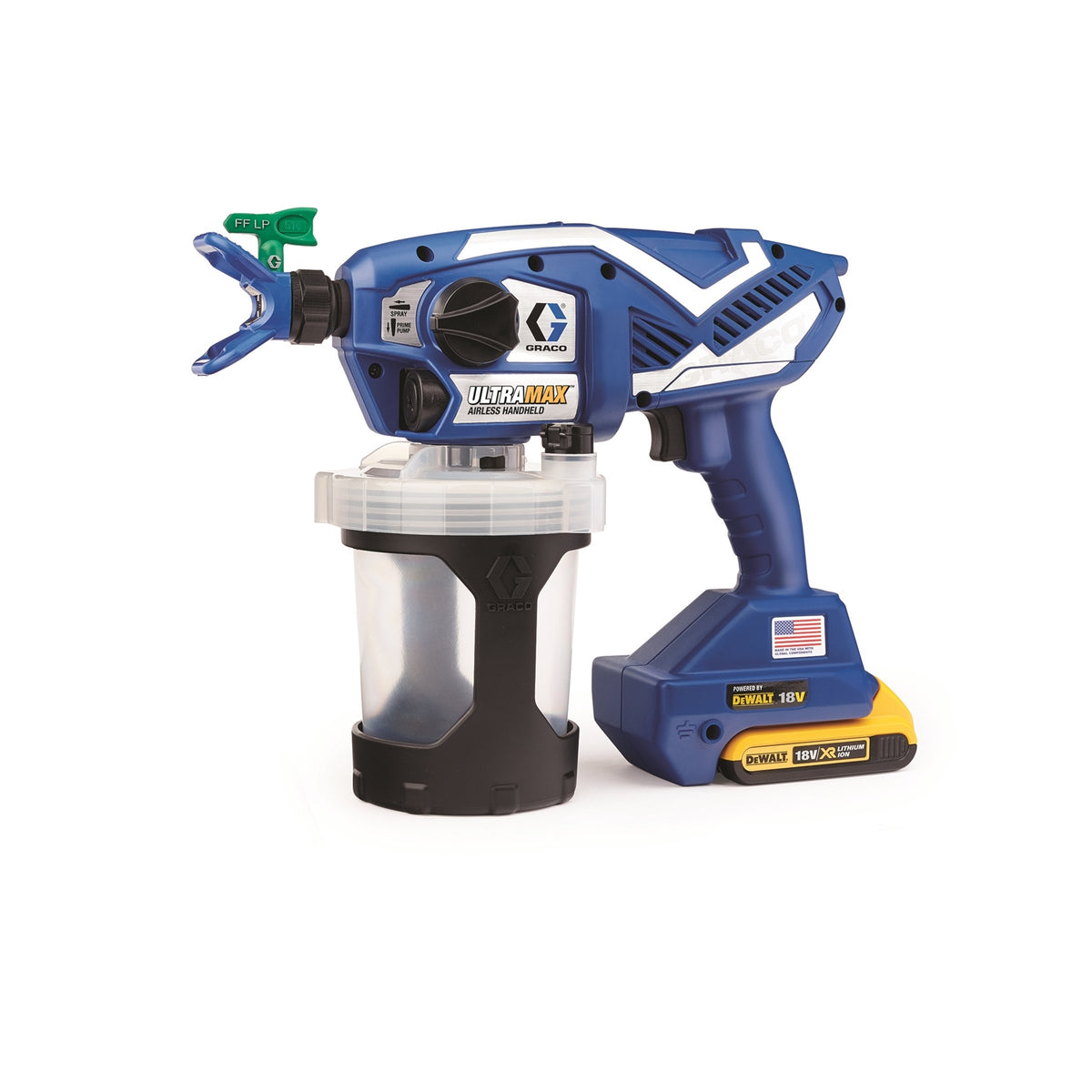

Graco Ultra Max Cordless Handheld DeWALT 18V kit
Graco part 17N225
- Max tip
- 0.016 in
- Max pressure
- 2000 psi (138 bar)
$1,663.00 inc GST
In the box All of it
- Ultra Max sprayer with cup support, lid, FlexLiner, funnel and strainer
- RAC X FFLP 514 and 210 tips, with FFLP tip guard
- 2x DeWALT 18V 2.0 Ah Li-ion battery (17P558)
- DeWALT 230V charger (17P561)
- Ground plug and spool
In stock: 5 at Deception Bay QLD, 101 at Derrimut, VIC · Stock checked 21 Oct, 6:30am
This counts toward your loyalty tier. Members save on tips and parts for it. How it works
Graco's safety warnings
- Engage trigger lock when not spraying.
- Do not put your hand over the spray tip.
- Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing equipment.
- $0 freight on this order. Tracked from the closest warehouse.
-
Click and collect from Deception Bay QLD, ready within the hour.
Other pickup points
- Derrimut, VIC: paid orders, allow 3 to 4 hours, wait for the pickup email
- Smithfield NSW: orders of $1,000 or more, usually 2 to 4 days
- Largs North SA: orders of $1,000 or more, usually 1 to 3 days
- Rockingham WA: orders of $1,000 or more, usually 4 to 7 days
NSW, SA and WA points are Refuelling Solutions c/o Airless. Choose your pickup point at checkout. How it works
- Pay over time with LeaseGo equipment finance, or pay by bank transfer. Both are options at checkout. Details
- Genuine Graco. 12 months from date of sale. Details
- Faulty or the wrong part from us? We fix it, replace it or refund it, and cover reasonable return freight. Unused and changed your mind? Ask us within 30 days of delivery (conditions and a restocking fee apply). Returns
- Free Pump Armor with your sprayer A 0.95 L bottle goes in your cart with the sprayer and comes off the order at checkout. One per order.
- Questions before you buy? Email spray@airlessspray.com.au or ask the chat assistant. We reply within one business day.
What you need to spray
Tips, filters and hose that suit the Ultra Max Cordless Handheld DeWALT 18V kit.
Spray tips
Tips we'd start with Our experience, not a Graco rating
Care and site
Overview
Why it's built this way.
The Ultra Max is the cordless handheld for oil based and solvent based paint as well as water based. The standard Ultra Cordless (17N221) looks much the same but is built for water based paint only. Pick the Ultra Max if your touch ups include oil based enamels, solvent based lacquers or other flammable coatings.
- Sprays water based, solvent based and oil based paint
- Ground plug and spool to earth the sprayer for oil based and flammable coatings
- Triax triple piston pump, carbide piston
- ProConnect pump replacement
- SmartControl, 35 to 138 bar
- FlexLiner 0.95 L bags
- Up to 3.8 L per charge; 35 min charge
- ANZ model: 230V charger and two 18V DeWALT batteries
Specifications
The numbers.
| Spec | Graco Ultra Max Cordless Handheld DeWALT 18V kit | |
|---|---|---|
| Price inc GST | $1,663.00 | |
| Graco part number | 17N225 (ANZ model) | |
| Power | Battery: 2x DeWALT 18V 2.0 Ah Li-ion (17P558) + 230V charger (17P561) | |
| Compatible batteries | DeWALT DCB183 and DCB203 | |
| Max tip size | 0.016 in (0.41 mm) | |
| Tip range | FFLP 0.008 to 0.016 in | |
| Max working pressure | 2000 psi (138 bar) | |
| Operating pressure | 510 to 2000 psi (35 to 138 bar) | |
| Paint base | Water, oil and solvent based, including flammable materials. Connect the grounding wire to a true earth for oil based or flammable materials. | |
| Cup | 0.95 L FlexLiner bags | |
| Tip | RAC X FFLP 514 and 210 | |
| Weight | 2.4 kg | |
| Dimensions | 36.1 x 12.7 x 26.7 cm (L x W x H) | |
| Operating temperature | 4 to 32 °C | |
| Sound pressure | 83.0 dB(A) |
Safety. Graco rates this sprayer for water based, oil based and flammable materials such as lacquer thinner, xylene and MEK. For oil based or flammable materials, connect the grounding wire and plug to a true earth ground and spray outdoors or in a well ventilated area. Sprayer generates sparks. No halogenated hydrocarbon solvents. Not approved for explosive atmospheres or hazardous locations.
Questions
Asked before you buy.
What's the biggest tip it runs?
0.016 in at up to 2000 psi (138 bar). Running a bigger tip than this wears the pump and the fan won't hold.
What comes with it?
- Ultra Max sprayer with cup support, lid, FlexLiner, funnel and strainer
- RAC X FFLP 514 and 210 tips, with FFLP tip guard
- 2x DeWALT 18V 2.0 Ah Li-ion battery (17P558)
- DeWALT 230V charger (17P561)
- Ground plug and spool
What's the warranty?
12 months from date of sale. Batteries and charger covered by DEWALT's warranty. Wear parts not covered.
Where's the manual?
When will it ship?
In stock: 5 at Deception Bay QLD, 101 at Derrimut, VIC · Stock checked 21 Oct, 6:30am
Something else? Email spray@airlessspray.com.au or ask Tip.
Graco Ultra Max Cordless Handheld DeWALT 18V kit
$1,663.00 inc GST
Build your kit
Set up for the way you work
Tick the tips, filters and extras you need with this sprayer. The total updates as you go.
Interactive parts diagram
Find the part. Add it to cart.
Graco's own exploded views. Tap a number to see the part. Filled numbers wear out with use, so keep a spare.
Wear part, keep a spareOther parts
Parts diagrams for Graco Ultra Max Cordless Handheld DeWALT 18V kit are being mapped from the Graco manual.
Email the part number or a photo to spray@airlessspray.com.au and we'll confirm it.
