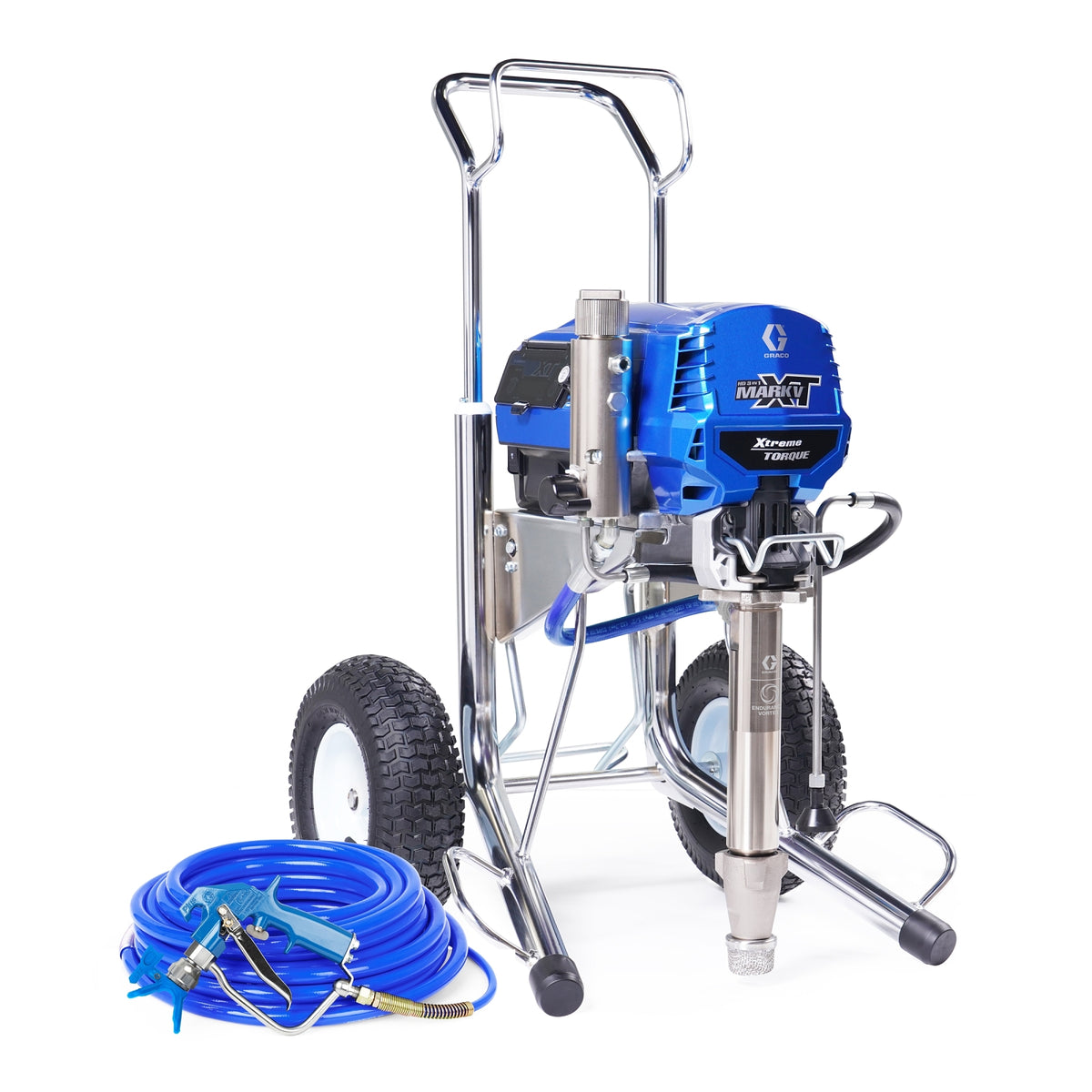

Graco Mark V XT HD 3-in-1 Standard Series, Hi-Boy

Pinch or tap to zoom. Swipe for more.
Mark XT HD (Standard)

Graco Mark V XT HD 3-in-1 Standard Series, Hi-Boy

Graco part 19F723

Max tip
0.035 in
Max pressure
3300 psi (228 bar)
Max flow
4.6 L/min
Motor
Xtreme Torque (brushless)

$15,015.00 inc GST

In the box All of it

Compare: Ultra 695 vs 795 vs 1095 XT

In stock: 1 at Deception Bay QLD, 8 at Derrimut, VIC · Stock checked 22 Oct, 6:30am

This counts toward your loyalty tier. Members save on tips and parts for it. How it works

Graco's safety warnings

  • Engage trigger lock when not spraying.
  • Do not put your hand over the spray tip.
  • Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing equipment.

Read the full injection warning

  • $0 freight to Brisbane, Sydney, Melbourne and Adelaide metro. Flat heavy goods rate elsewhere, $55 to $220.
  • Click and collect from Deception Bay QLD, ready within the hour.
    Other pickup points
    • Derrimut, VIC: paid orders, allow 3 to 4 hours, wait for the pickup email
    • Smithfield NSW: orders of $1,000 or more, usually 2 to 4 days
    • Largs North SA: orders of $1,000 or more, usually 1 to 3 days
    • Rockingham WA: orders of $1,000 or more, usually 4 to 7 days

    NSW, SA and WA points are Refuelling Solutions c/o Airless. Choose your pickup point at checkout. How it works

  • Pay over time with LeaseGo equipment finance, or pay by bank transfer. Both are options at checkout. Details
  • Genuine Graco. 12 months from date of sale, plus lifetime warranty on the Advantage Drive gears. Details
  • Faulty or the wrong part from us? We fix it, replace it or refund it, and cover reasonable return freight. Unused and changed your mind? Ask us within 30 days of delivery (conditions and a restocking fee apply). Returns
  • Parts after the sale 7 diagrams for this sprayer, mapped from the Graco manual, wear parts marked. See the parts
  • Free Pump Armor with your sprayer A 0.95 L bottle goes in your cart with the sprayer and comes off the order at checkout. One per order.
  • Questions before you buy? Email spray@airlessspray.com.au or ask the chat assistant. We reply within one business day.

What you need to spray

Tips, filters and hose that suit the Mark V XT HD 3-in-1 Standard Series, Hi-Boy.

Spray tips

Tips we'd start with Our experience, not a Graco rating

    • Graco RAC X LP Low Pressure SwitchTip $57.00
    • Graco RAC X FFLP Fine Finish Low Pressure SwitchTip $57.00
    • Graco RAC X WideRAC LP SwitchTip $64.00
    • Graco RAC X LTX SwitchTip $55.00

    Guard and seals

    Filters

    Hose and whips

    Extensions

    Rollers

    Handpiece parts

    Care and site

    Keep it running

    Two painters on this sprayer: each needs a handpiece and a hose, and the biggest tip drops to 0.029 in (three handpieces 0.023 in) with two running. Buying the sprayer? The Second painter kit adds the second set. Already own one? Buy the Heavy-Duty Texture airless spray gun, 4 finger, the BlueMax II airless hose 1/4 in (6.4 mm) x 15 m (50 ft) and the Hose union 1/4 in npt(M) x 3/8 in npsm(F) on their own. The second hose goes on the filter base's second outlet, which leaves the factory capped with a plug. That outlet is 3/8 in, so the union in this kit steps it down to the 1/4 in hose. Painting walls with the second gun? Swap in the Contractor PC. The 3-in-1 sprays paint as well as texture, and the Contractor PC with an LP 517 tip is its paint handpiece. The kit gun is the Heavy-Duty Texture handpiece Graco lists for the Mark V XT.

    Build a full kit for how you workEvery tip it runs, up to 0.035 in
    Parts for this sprayer 7 diagrams mapped from the Graco manual. Tap the part, add it to cart.

    Overview

    Why it's built this way.

    • Xtreme Torque motor
    • Rapid-Response control, Low/High pressure modes
    • LED display
    • Endurance Vortex pump + ProConnect
    • TurboClean
    • WatchDog
    • Easy Out filter
    • 3-in-1: paint, texture/heavy coatings
    • Upgradeable: QuikReel kit 25V145, SmartDisplay XT 20B432, FlatProof tyres 17E687, Crushproof strainer 15V573

    Specifications

    The numbers.

    Graco Mark V XT HD 3-in-1 Standard Series, Hi-Boy
    Price inc GST$15,015.00
    Graco part number19F723
    Power220-240V electric, 10A; min generator 5000 W
    Max tip size0.035 in
    Max tip, two handpieces0.029 in (three handpieces 0.023 in)
    Max working pressure3300 psi (228 bar)
    Max flow4.6 L/min
    Paint baseWater and oil based. Graco gives no flammable material rating for this sprayer. No halogenated solvents or bleach.
    MotorXtreme Torque (brushless) 2.9 hp
    Hose3/8 in x 15 m BlueMax II
    HandpieceHeavy-Duty Blue Texture Gun
    TipRAC X LTX 427 and 531
    Weight55 kg
    FrameHi-Boy

    Safety. Graco: sprayer generates sparks. Keep the pump at least 6.1 m from the spray area, in a well ventilated area, and do not plug or unplug the power cord when flammable fumes are present. Ground the sprayer, hose, gun and a metal pail. No halogenated hydrocarbon solvents or chlorine bleach. Not approved for explosive atmospheres or hazardous locations.

    Questions

    Asked before you buy.

    What's the biggest tip it runs?

    0.035 in, with a max flow of 4.6 L/min at up to 3300 psi (228 bar). Running a bigger tip than this wears the pump and the fan won't hold.

    What comes with it?
    • Heavy-Duty Blue Texture Gun handpiece
    • 3/8 in x 15 m BlueMax II hose
    • RAC X LTX 427 and 531 tip
    What's the warranty?

    12 months from date of sale, plus lifetime warranty on the Advantage Drive gears. Wear parts not covered.

    Can I get spare parts for it?

    Yes. The parts are mapped from the Graco manual. Open the parts diagram, tap the area, then the part.

    Where's the manual?

    3B0070 Operation, Parts 695XT/795XT/1095XT/Mark IV XT/Mark V XT/Mark VII XT, and 2 more under Manuals.

    When will it ship?

    In stock: 1 at Deception Bay QLD, 8 at Derrimut, VIC · Stock checked 22 Oct, 6:30am

    Freight and lead times

    Something else? Email spray@airlessspray.com.au or ask Tip.

    Graco Mark V XT HD 3-in-1 Standard Series, Hi-Boy $15,015.00 inc GST

    Compare sprayers

    Specs from each maker's published data. Rows show only what's listed.

    Build your kit

    Set up for the way you work

    Tick the tips, filters and extras you need with this sprayer. The total updates as you go.

    Keep it running

    The wear parts for this sprayer. 15% off when you buy them with it. Unticked: add what you want on the shelf.

    Or add them one at a time.

    Interactive parts diagram

    Find the part. Add it to cart.

    Graco's own exploded views. Tap a number to see the part. Filled numbers wear out with use, so keep a spare.

    Wear part, keep a spareOther parts

    Loading the parts drawings.

    Tap a number on the drawing

      Drawings and reference numbers are from the Graco parts manual (3B0070, X011699, 3A9391, 308491). Can't see your part? Email spray@airlessspray.com.au with a photo and we'll find it.
