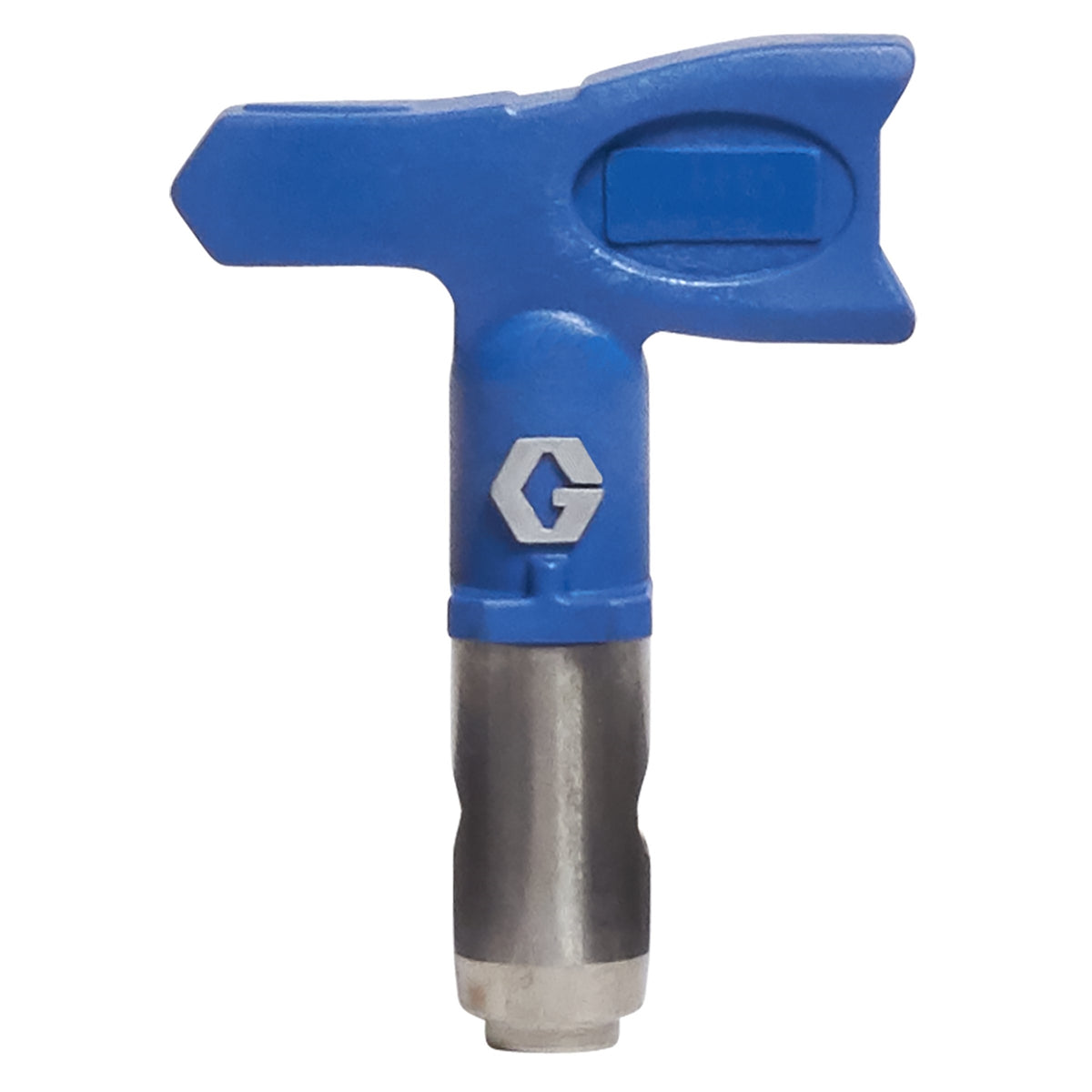

Graco RAC X LTX SwitchTip
Graco part LTX5177/8 in guard
- Tip size
- 517
- Orifice
- 0.017 in
- Fan width
- 10 in
- Thread
- 7/8 in
$55.00 inc GST
Derrimut, VIC only: 6 in stock, ships in 1 to 2 business days · Stock checked 21 Oct, 5:08am
Members get 3 to 8% off this. Log in or create an account
Size LTX517 104 sizes by hole and fan
- $0 freight on orders from $300, $14.95 below, plus $10 to regional and remote areas. Tracked from the closest warehouse.
- Genuine Graco, covered by the Graco warranty.
- Not sure which size? Email spray@airlessspray.com.au with the paint and the sprayer, or ask the chat assistant. We reply within one business day.
Sizes
Hole size by fan width.
Rows are the hole (orifice), columns the fan width at 30 cm. Tell us what you're spraying and we'll mark the size that suits it.
Pick the brand, then type your paint
Ships nowBlank means no tip in that sizeEvery family on one chart
Tip code
How to read the code.
- First digit × 2
- Fan width in inches at about 30 cm from the surface.
- Last two digits
- Orifice in thousandths of an inch. The hole sets how much paint comes out.
Same last two digits, same hole and the same paint out. A bigger first digit spreads it over a wider fan, so each pass lays a thinner coat.
Overview
The detail.
Pick your size below. The size code tells you the spray pattern: the last two digits are the orifice in thousandths of an inch, and the digits before them, doubled, give the fan width in inches at 12 in from the surface. So 517 is a 10 in fan with a .017 orifice.
Fits guard: RAC X HandTite tip guard 246215 (7/8 in thread).
Fits: any airless sprayer whose max tip is the same size as the tip's orifice or bigger.
Fits: Graco Ultra 390 Stand, Graco Ultra 390 Hi-Cart, Graco Ultra 395 Stand, Graco Ultra 450 Stand, Graco Ultra 490 XT Stand, Graco Ultra 495 XT Stand, Graco Ultra 495 XT Lo-Boy, Graco Ultra 495 XT Hi-Boy, Graco Ultra 650 XT Lo-Boy, Graco Ultra 650 XT Hi-Boy, Graco Ultra 695 XT Standard Series, Graco Ultra 695 XT Lo-Boy, Graco Ultra 695 XT ProContractor Series, Hi-Boy, Graco Ultra 795 XT Standard Series, Hi-Boy, Graco Ultra 795 XT ProContractor Series, Hi-Boy, Graco Ultra 1095 XT Standard Series, Hi-Boy, Graco Ultra 1095 XT ProContractor Series, Hi-Boy, Graco Mark V XT HD 3-in-1 Standard Series, Hi-Boy, Graco Mark V XT HD 3-in-1 ProContractor Series, Hi-Boy, Graco GMAX II 3900 ProContractor Series, Hi-Boy, Graco GMAX II 5900 ProContractor Series, Hi-Boy
Fits
Made for these.
- Graco Ultra 390 Hi-Cart
- Graco Ultra 390 Stand
- Graco Ultra 395 Stand
- Graco Ultra 450 Stand
- Graco Ultra 490 XT Stand
- Graco Ultra 495 XT Stand
- Graco Ultra 495 XT Hi-Boy
- Graco Ultra 495 XT Lo-Boy
- Graco Ultra 650 XT Hi-Boy
- Graco Ultra 650 XT Lo-Boy
- Graco Ultra 695 XT Standard Series
- Graco Ultra 695 XT Lo-Boy
- Graco Ultra 695 XT ProContractor Series, Hi-Boy
- Graco Ultra 795 XT Standard Series, Hi-Boy
- Graco Ultra 795 XT ProContractor Series, Hi-Boy
- Graco Ultra 1095 XT Standard Series, Hi-Boy
- Graco Ultra 1095 XT ProContractor Series, Hi-Boy
- Graco Mark V XT HD 3-in-1 Standard Series, Hi-Boy
- Graco Mark V XT HD 3-in-1 ProContractor Series, Hi-Boy
- Graco GMAX II 3900 ProContractor Series, Hi-Boy
- Graco GMAX II 5900 ProContractor Series, Hi-Boy
- GMAX II 3900
- GMAX II 5900
- HeavyCoat 950 E
- Mark V XT HD 3-in-1
- ProSpray 3.25
- ProSpray 3.29
- ProSpray 3.31
- ProSpray 3.34
- ProSpray 3.39
- SuperFinish 33 Pro
- Ultra 1095 XT
- Ultra 390
- Ultra 395
- Ultra 450
- Ultra 490 XT
- Ultra 495 XT
- Ultra 650 XT
- Ultra 695 XT
- Ultra 795 XT
Check your part number against the Graco manual, or email it to spray@airlessspray.com.au and we'll confirm.
Questions
Asked before you buy.
What does 517 mean?
The first digit is the fan, the last two are the orifice. This tip sprays a 10 in fan through a 0.017 in orifice.
What does it fit?
GMAX II 3900, GMAX II 5900, HeavyCoat 950 E, Mark V XT HD 3-in-1, ProSpray 3.25, ProSpray 3.29, ProSpray 3.31, ProSpray 3.34, ProSpray 3.39, SuperFinish 33 Pro, Ultra 1095 XT, Ultra 390, Ultra 395, Ultra 450, Ultra 490 XT, Ultra 495 XT, Ultra 650 XT, Ultra 695 XT, Ultra 795 XT. Not sure about yours? Email the model to spray@airlessspray.com.au.
When will it ship?
Derrimut, VIC only: 6 in stock, ships in 1 to 2 business days · Stock checked 21 Oct, 5:08am
Something else? Email spray@airlessspray.com.au or ask Tip.
LTX517
$55.00 inc GST
