Ultra XT (Standard)

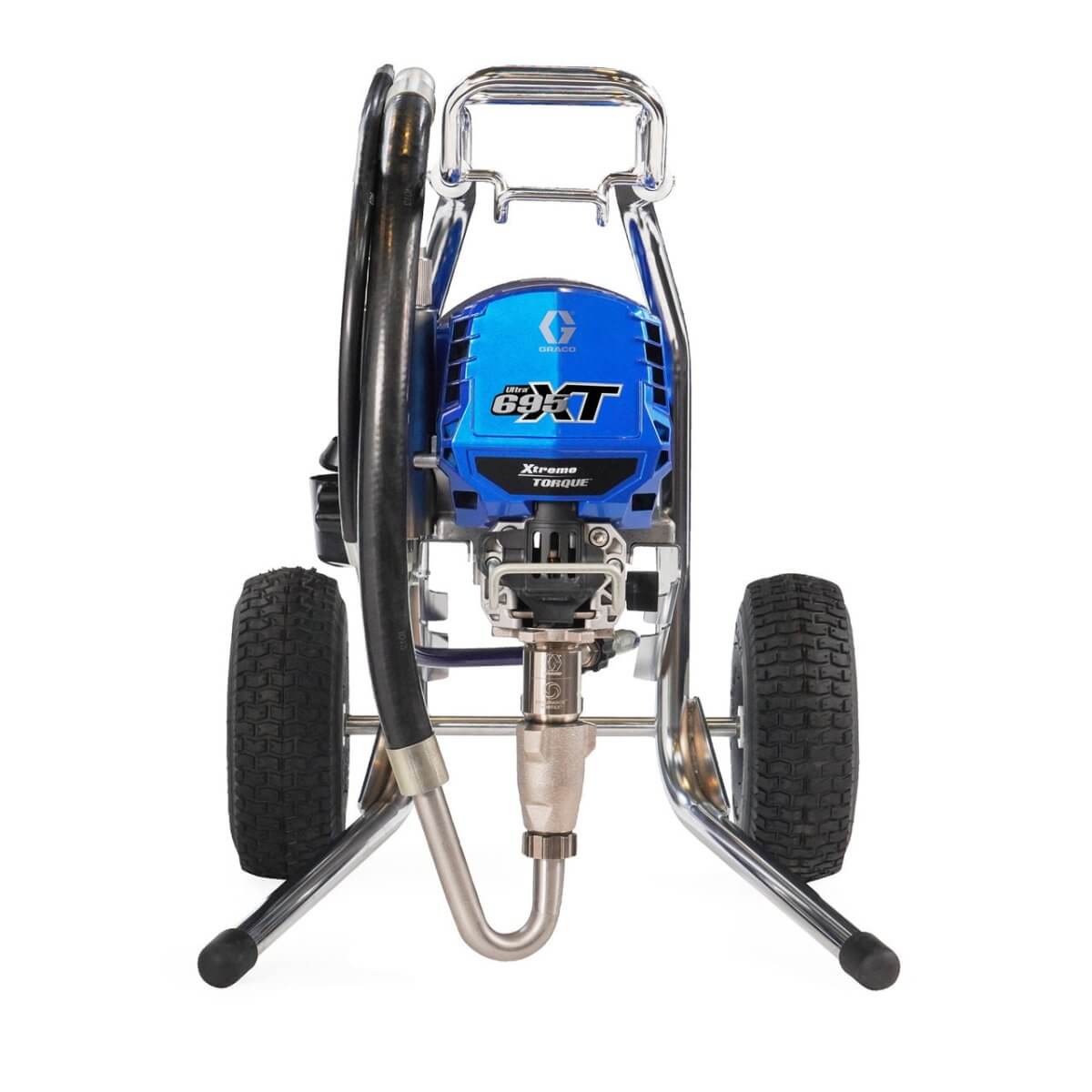

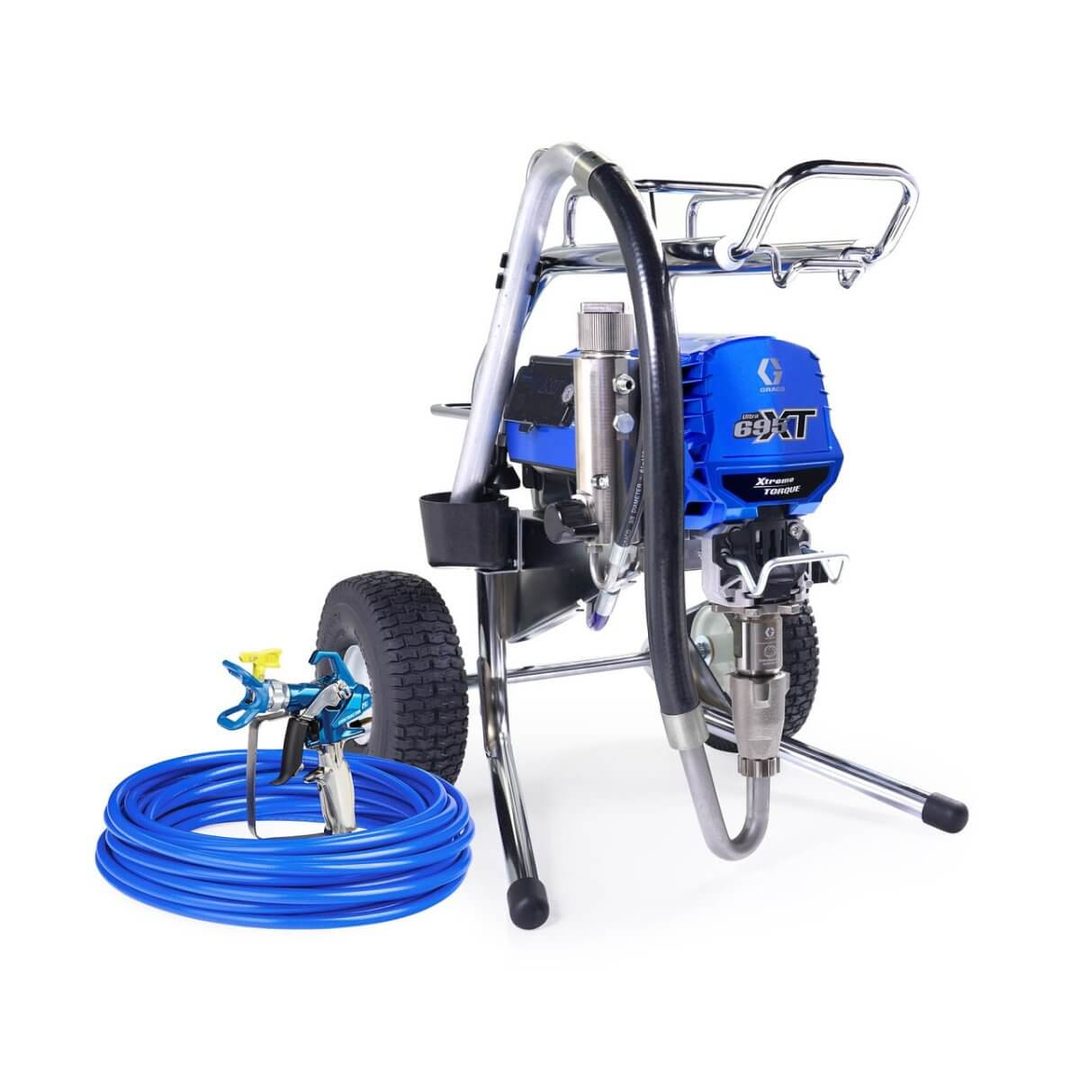

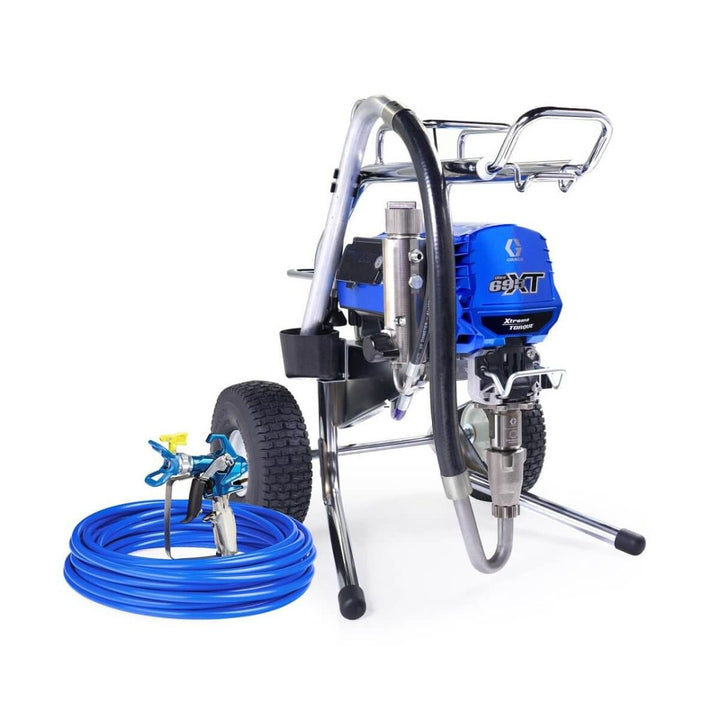

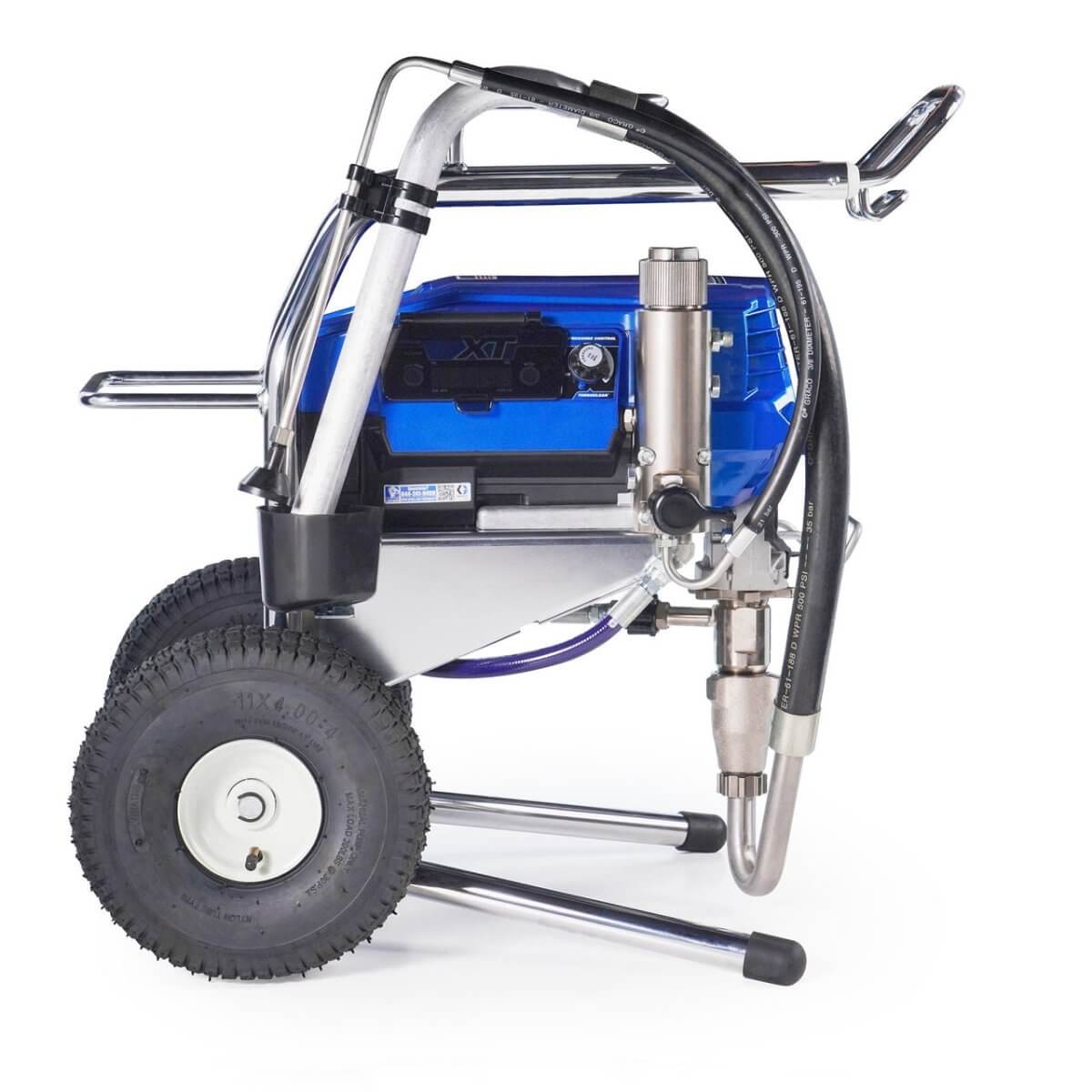

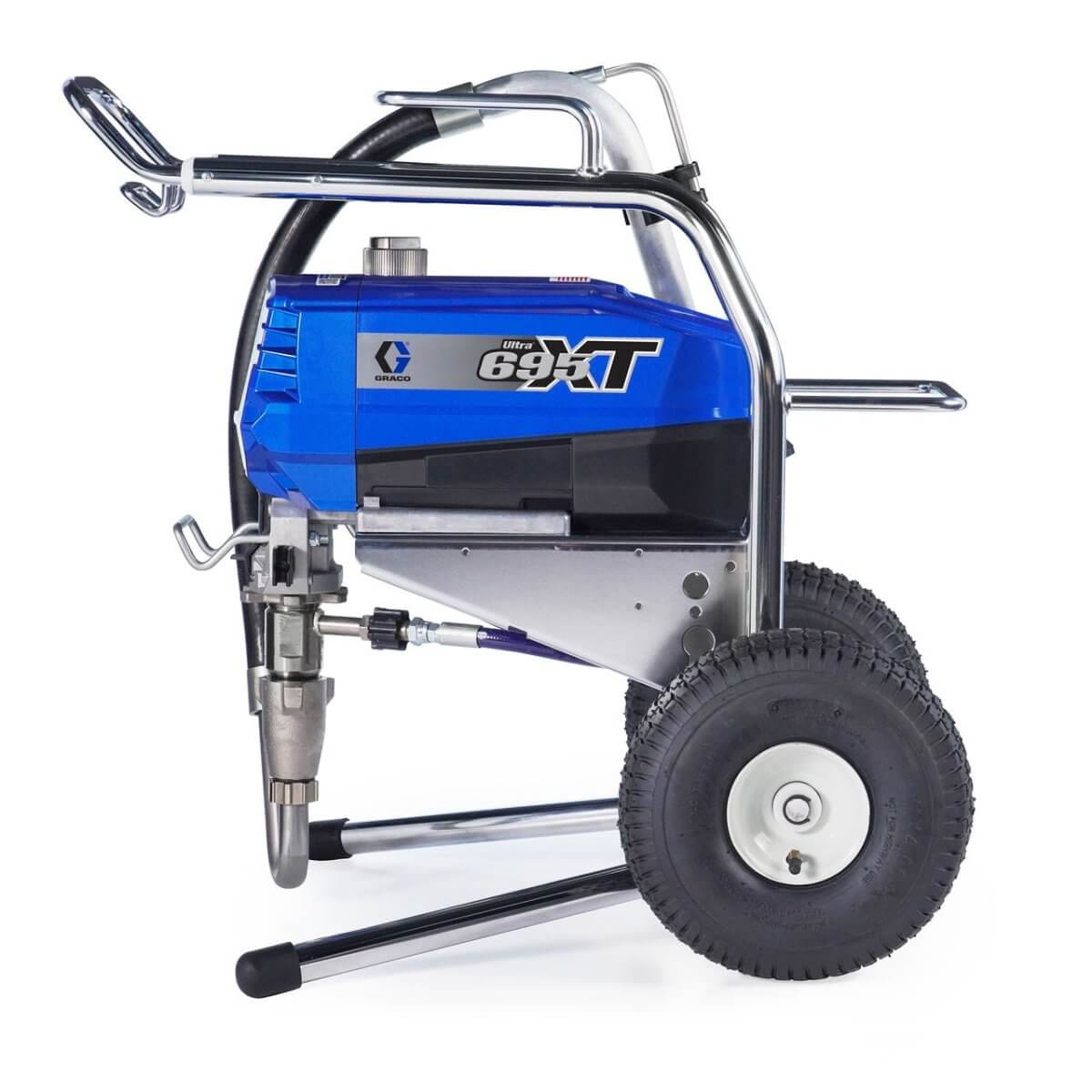

Graco Ultra 695 XT Lo-Boy

Graco part 19F713

Max tip
0.031 in
Max pressure
3300 psi (228 bar)
Max flow
4 L/min
Motor
Xtreme Torque (brushless)

$10,048.00 inc GST

In the box All of it

Compare: Ultra 695 vs 795 vs 1095 XT

Derrimut, VIC only: 9 in stock, ships in 1 to 2 business days · Stock checked 21 Oct, 5:01am

This counts toward your loyalty tier. Members save on tips and parts for it. How it works

Graco's safety warnings

  • Engage trigger lock when not spraying.
  • Do not put your hand over the spray tip.
  • Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing equipment.

Read the full injection warning

  • $0 freight to Brisbane, Sydney, Melbourne and Adelaide metro. Flat heavy goods rate elsewhere, $55 to $220.
  • Click and collect from Deception Bay QLD, usually ready in 3 to 5 days.
    Other pickup points
    • Derrimut, VIC: paid orders, allow 3 to 4 hours, wait for the pickup email
    • Smithfield NSW: orders of $1,000 or more, usually 2 to 4 days
    • Largs North SA: orders of $1,000 or more, usually 1 to 3 days
    • Rockingham WA: orders of $1,000 or more, usually 4 to 7 days

    NSW, SA and WA points are Refuelling Solutions c/o Airless. Choose your pickup point at checkout. How it works

  • Pay over time with LeaseGo equipment finance, or pay by bank transfer. Both are options at checkout. Details
  • Genuine Graco. Graco standard warranty: 12 months from date of sale to original purchaser (stated in operation manual). Details
  • Faulty or the wrong part from us? We fix it, replace it or refund it, and cover reasonable return freight. Unused and changed your mind? Ask us within 30 days of delivery (conditions and a restocking fee apply). Returns
  • Parts after the sale 8 diagrams for this sprayer, mapped from the Graco manual, wear parts marked. See the parts
  • Free Pump Armor with your sprayer A 0.95 L bottle goes in your cart with the sprayer and comes off the order at checkout. One per order.
  • Job ready kits Interior repaint, exterior and fences, new build ceilings: the tips, guard and extras for the job, 15% off the add-ons with your sprayer, whole kit or a few of them. Build yours
  • Questions before you buy? Email spray@airlessspray.com.au or ask the chat assistant. We reply within one business day.

What you need to spray

Tips, filters and hose that suit the Ultra 695 XT Lo-Boy.

Spray tips

Tips we'd start with Our experience, not a Graco rating

    • Graco RAC X LP Low Pressure SwitchTip $58.00
    • Graco RAC X FFLP Fine Finish Low Pressure SwitchTip $58.00
    • Graco RAC X WideRAC LP SwitchTip $65.00
    • Graco RAC X LTX SwitchTip $55.00

    Guard and seals

    Filters

    Hose and whips

    Extensions

    Rollers

    Handpiece parts

    Care and site

    Keep it running

    Two painters on this sprayer: each needs a handpiece and a hose, and the biggest tip drops to 0.023 in with two running. Buying the sprayer? The Second painter kit adds the second set. Already own one? Buy the Contractor PC airless spray gun and the BlueMax II airless hose 1/4 in (6.4 mm) x 15 m (50 ft) on their own. The second hose goes on the filter base's second outlet, which leaves the factory capped with a plug.

    Build a full kit for how you workEvery tip it runs, up to 0.031 in
    Parts for this sprayer 8 diagrams mapped from the Graco manual. Tap the part, add it to cart.

    Overview

    Why it's built this way.

    • Xtreme Torque motor: runs slower and quieter, which Graco says cuts motor speed by up to 90%
    • Rapid-Response pressure control (10 psi increments)
    • Selectable Low (50-2000 psi) / High (500-3300 psi) pressure modes
    • LED digital display
    • Endurance Vortex piston pump
    • ProConnect pump removal
    • TurboClean
    • WatchDog pump protection
    • Easy Out filter

    Specifications

    The numbers.

    Graco Ultra 695 XT Lo-Boy
    Price inc GST$10,048.00
    Graco part number19F713
    Power220-240V electric, 10A, 50-60 Hz; min generator 5000 W
    Max tip size0.031 in
    Max tip, two handpieces0.023 in
    Max working pressure3300 psi (228 bar)
    Max flow4 L/min
    Paint baseWater and oil based. Graco gives no flammable material rating for this sprayer. No halogenated solvents or bleach.
    MotorXtreme Torque (brushless) 2.1 hp
    Hose1/4 in x 15 m BlueMax II
    HandpieceContractor PC
    TipRAC X LP 517 SwitchTip with guard
    Weight42 kg
    FrameLo-Boy

    Safety. Graco: sprayer generates sparks. Keep the pump at least 6.1 m from the spray area, in a well ventilated area, and do not plug or unplug the power cord when flammable fumes are present. Ground the sprayer, hose, gun and a metal pail. No halogenated hydrocarbon solvents or chlorine bleach. Not approved for explosive atmospheres or hazardous locations.

    Questions

    Asked before you buy.

    What's the biggest tip it runs?

    0.031 in, with a max flow of 4 L/min at up to 3300 psi (228 bar). Running a bigger tip than this wears the pump and the fan won't hold.

    What comes with it?
    • Contractor PC handpiece
    • 1/4 in x 15 m BlueMax II hose
    • RAC X LP 517 SwitchTip with guard tip
    What's the warranty?

    Graco standard warranty: 12 months from date of sale to original purchaser (stated in operation manual).

    Can I get spare parts for it?

    Yes. The parts are mapped from the Graco manual. Open the parts diagram, tap the area, then the part.

    Where's the manual?

    3B0070 Operation, Parts (and repair) 695XT/795XT/1095XT/Mark IV XT/Mark V XT/Mark VII XT, and 2 more under Manuals.

    When will it ship?

    Derrimut, VIC only: 9 in stock, ships in 1 to 2 business days · Stock checked 21 Oct, 5:01am

    Freight and lead times

    Something else? Email spray@airlessspray.com.au or ask Tip.

    Graco Ultra 695 XT Lo-Boy $10,048.00 inc GST

    Compare sprayers

    Specs from each maker's published data. Rows show only what's listed.

    Build your kit

    Set up for the way you work

    Pick the work you do. We've ticked the tips, filters and extras that suit it and this sprayer. Untick anything you already have.

    The three tips most painters run indoors, a spare guard and a gun filter. Every add-on here is 15% off with your sprayer, so untick anything you already own. The sprayer stays at its price.

    Keep it running

    The wear parts for this sprayer. 15% off when you buy them with it. Unticked: add what you want on the shelf.

    Or add them one at a time.

    Interactive parts diagram

    Find the part. Add it to cart.

    Graco's own exploded views. Tap a number to see the part. Filled numbers wear out with use, so keep a spare.

    Wear part, keep a spareOther parts

    Loading the parts drawings.

    Tap a number on the drawing

      Drawings and reference numbers are from the Graco parts manual (3B0070, X011699, 3A9391, 3A9347, 3A6285). Can't see your part? Email spray@airlessspray.com.au with a photo and we'll find it.
